■Overview of the Circulating Biotron method |
The Circulating Biotron method, which features an energy- and space-saving design,
|
quickly improves water transparency.
|
|
|
|
In the past, it has been difficult to control algae growth and restore transparency because there has been no sure-fire technique for purifying ponds. The Circulating Biotron method can be easily used with just a 100 V electrical outlet and requires no major installation work. We developed this new purification system so that it could increase transparency and improve bottom quality in lakes and marshes, ponds, drainage ditches,reservoirs, golf course ponds, park ponds, and garden ponds in an energy-efficient and inexpensive manner.The Circulating
|
Biotron method is patented in Japan. |
|
With the launch of the Simple Circulating Biotron BT-100, we have delivered an even higher level of energy efficiency and low cost in a
|
package that can be installed even more easily. |
|
Simply install a model based on the size and shape of the pond to control transparency automatically using a purification agent. The product yields results more reliably than conventional purification techniques with effects that extend over a large area to create a fresh, transparent water environment.
By using the Circulating Biotron method in conjunction with our biologically active formulation Aqualift 1600PN/LN, you can also break down nitrogen that causes eutrophication, toxic substances, and sulfides and organic matter that degrade bottom quality to restore aquatic organisms such as bottom-dwelling microorganisms and protozoa, thereby promoting the purifying effects of the food chain.
※See our manually applied Pond CF product for applications involving moving water such as garden ponds, golf course ponds, ponds at shrines and temples, and ponds at other facilities where the water circulates.

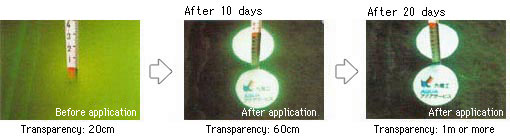

■Improves transparency quickly.
|
|
|
|
| Patented in Japan |
 |
 |
|
|
|
|
※Click here for more information about Aqualift 1600PN/LN joint-use biologically active formulation.
|
|
|
 |
| Circulating Biotron method BT-200 and BT-500 |
|

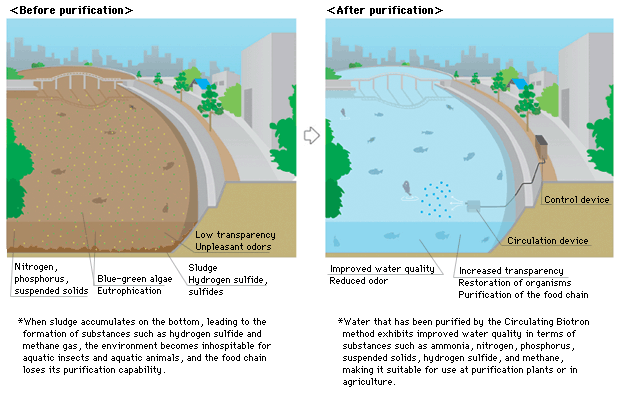

■Devices descriptions |
These models are designed to accommodate a variety of applications while taking up only a small amount of space.
|
Control device
|
|
Circulation device
|
|
|
|
The control device controls operation of the circulation device, to which it sends a constant amount of purification agent.
BT-200: 100(H)×90(W)×65(D)cm
|
|
The circulation device generates a gentle flow (circulation) of water throughout the entire pond while mixing pond water.
K-500: 26(H)×40 (W)×64(D)cm (not including pedestal)
|
| □ |
The Circulating Biotron method was certified under the Medium and Small Enterprise Creative Activity Promotion Act (Japan Research Industries and Industrial Technology Association No. 9-392) by Fukuoka Prefecture on November 25, 1997.
|
|
|
|
■The Circulating Biotron method is designed to be energy- and space-efficient.
| □ | The system's devices use a 100 V or 200 V main power supply and consume about 630 W of power. The energy-saving compact model uses just 100 W of power. |
| □ | The system is inexpensive to install compared to a filtration system or other equipment. In addition, since there is almost no need to replace filter media or consumables, running costs can be kept low. |
| □ | The control device is compact so that it won't interfere with the surrounding view or scenery. It's also quiet in fact, it's almost silent. |
| □ | By adjusting the number of devices used, it is possible to accommodate a variety of bodies of water, including lakes and marshes, dams, golf course ponds, garden ponds, park ponds, and castle moats. |
| □ | Installation work can be completed in a day. |
| ※ |
Click here for more information about Circulating Biotron method devices (BT-200 and BT-500). |
|
■Safety testing of the purification agent
The system uses a safe purification agent that does not impact the ecosystem. The safety of that agent has been verified by toxicity testing using Oryzias latipes as well ashealth-related testing andtesting related to required tap water characteristics as required by the Water Supply Act, among other tests.
|
|
※Click here to view water quality test results and safety test results.
|
■Purified water can be reused as-is.
| □ | Purified water from agriculture reservoirs, golf course ponds, recreational ponds, park ponds, and other bodies of water can be used to water crops, lawns, ornamental trees, and other plants as-is, without further treatment. Water from industrial sedimentation basins can also be used for various facility-specific uses without further treatment. |
|
■Maintenance work and water quality testing
| □ | Once a month, our personnelwill visit your site to maintain and manage transparency and water quality, replenish the purification agent, measure water quality, inspect and clean the devices, replace consumables, and submit a monthly report, among other services.
|
| □ | We can also compile graphs tracking environmental water quality test parameters such as nitrogen, phosphorus, COD, pH level, and transparency along with reports. In addition, we can measure other water quality parameters.
|
| □ | Customers can also replenish the purification agent and otherwise manage the system on their own, based on our advice. In this case, you will need to report information such as transparency and other data describing the status of the pond (based on visual observations). In some cases, we ask that customers send us a sample of the pond's water (500 cc).
|
|
|
|
|
| Simple Circulating Biotron method BT-100 |
|
The Simple Circulating Biotron method BT-100 is a purification device that has been developed so that customers can install it themselves in garden ponds, drainage ditches, park ponds, fishing ponds, golf course ponds, and industrial sedimentation basins.
This product makes it possible to improve, maintain, and manage pond transparency and water quality at lower cost than conventional means simply by reporting information about the condition of the pond and then replenishing purification agent according to the water quality and type of pond based on our advice.
|
 |
|
■Product features |
| □ |
Since it's lighter than previous devices, the BT-100 is easy to transport, install, and manage.
|
|
| □ |
The circulation device is installed in the pond.
|
| □ |
Just connect to a 100 V power supply to use.
|
| ※ |
The BT-100 cannot be used in ponds with less than 100 tons of water. Instead, address
water quality issues in such bodies of water by adding water or using a filter.
|
|
|
|

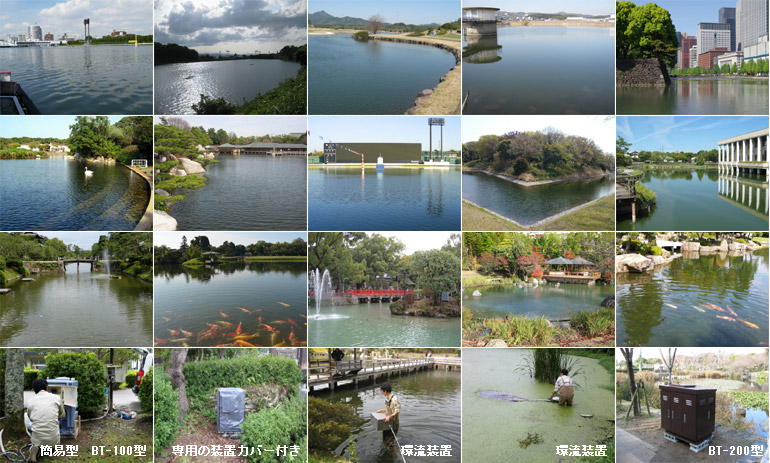

■Example installations |
| Before |
|
After |
 |
 |
 |
| AShrine, Fukuoka Prefecture: About 1,200 tons |
|
|
|
|
| Before |
|
After |
 |
|
 |
| APark, Saga Prefecture: About 40,000 tons |
|
|
|
|
| Before |
|
After |
 |
|
 |
| APlant in Hyogo Prefecture: About 7,000 tons |
|
|
|
|
|
■Devices descriptions |
The BT-100 can be used in a variety of applications thanks to its energy- and space-saving design.
|
Control device
|
|
Circulation device
|
|
Device cover
|
|
|
|
|
|
The control device controls operation of the circulation device, to which it sends a constant amount of purification agent.
■Dimensions: About 86(H)×58(W)×55(D)cm
■Weight: About 20 kg
■Main power supply: 100 V
■Chemical pump: 15 W
|
|
The circulation device generates a gentle flow (circulation) of water throughout the entire pond while mixing the pond water to disperse the purification agent.
■Dimensions: About 24(H)×37(W)×58(D)cm
■Weight: About 11 kg
■Water pump: 100 V,150 W and 230 W
|
|
|
|
| ■ |
Reference selling price: ¥450,000 to ¥550,000 (one control device and one circulation device)
|
|
Pricing reflects typical wiring and submersible pump requirements and may vary depending on the specific characteristics of the pond and installation location.
※Additional fees apply if we install and set up the system. |
|
| ※ |
To improve water and bottom quality, we recommend using Aqualift 700PN or Aqualift 1600PN/LN (for large ponds) in conjunction with the BT-100.
|
| ※ |
To increase transparency, we recommend introducing our manually applied control agent (clarifying agent) Pond CF into the water flow of the pond's circulating pump in garden ponds, golf course ponds, and other bodies of water of 100 to 1,500 ㎥ in size.
|
|
■An energy-saving design keeps operation economical. |
| □ |
With a 100 V main power supply and pump power consumption of 150 W and 230 W, the BT-100 is energy-efficient and economical to operate.
|
| □ |
Installation work can be completed in several hours.
|
|
■If you install and maintain the system |
| □ |
Our maintenance personnel will offer advice about installing the device.
※If necessary, we can install or be present at the installation (separate fees apply).
|
| □ |
During subsequent regular maintenance, our personnel will offer advice concerning the amount of purification agent with which to replenish the control device, adjustment issues, and other aspects of system operation if you report the condition of the pond to us. （※We'll send you purification agent based on the water quality and characteristics of the pond.）
|
|
■If we install and maintain the system |
| □ |
Our maintenance personnel will travel to your site, where they'll install the Circulating Biotron devices, set them up, and adjust them.
|
| □ |
During subsequent regular maintenance, our personnel will visit your site, where they'll inspect and adjust the system, replenish purification agent, and maintain and manage water quality, transparency, and other parameters while checking the condition of your pond.
|
|
| ※Contact us with inquiries about topics such as water or pond conditions. |
| ※This product is designed for use by end-users, from whom we welcome inquiries. |
|
|
|
| □ |
To improve water quality in bays, lakes and marshes, dams, aquaculture sites, agricultural reservoirs, rivers, fishing ponds, golf course ponds, drainage ditches, and other bodies of water, see our Aqualift 1600PN. |
| □ |
To improve water quality in closed aquaculture sites, carp ponds, garden ponds, biotopes, and ornamental ponds, see our Aqualift 700PN. |
| □ |
To filter garden ponds and small ornamental ponds of less than 5 m3 in volume, see our Easy Filter I. |
| □ |
To control growth of blue-green and other algae, see our Control Agent E-200N. |
| □ |
For bodies of water that do not host any living organisms, for example water parks and water palettes, see our B-100. |
| □ |
To create more transparent water in a fountain or other body of water, see our B-50. |
| □ |
For application-specific product information, see this list of control agents. |
|
|
| ■ |
1. |
This pamphlet is mailed and used in promotional displays for the Circulating Biotron BT-100. Please take a look if you see one. |
|
| ■ |
2. |
We also advertise the Circulating Biotron method in golf specialty and industry magazines. |
|
|
| 1. Circulating Biotron BT-100 pamphlet |
|
2.Ad in a golf specialty magazine |
|
|
|
|
|
|
|
| 環流ビオトロン方式・簡易型環流ビオトロンBT-100型は、おかげさまで全国で多く使用され、ご好評いただいています。 |
|
※主に九州と関西の施工現場の一部を掲載しています。 |
| ※ |
右の「その後・比較」ボタンは、下記写真一覧の「その後写真」、「比較写真」を掲載しています。 |
|
|
下の写真は、「施工写真」「その後の写真」｢比較写真」｢動画」がご覧いただけます。
|
|
|
|
|
  平成29年4月27日
- 滋賀県 散水用の池
透視度の向上、臭気の改善、藻類の抑制、水質・底質の改善の目的
アクアリフト1600LN
環流ビオトロン▼動画あり
 - 平成29年4月11日
- 大阪府 Y邸
透視度の向上、藻類の抑制、水質・底質の改善の目的
アクアリフト1600LN
環流ビオトロン▼動画あり
 - 平成29年2月24日撮影
- 滋賀県 Ｎ公園池
透視度の向上、藻類の抑制、水質・底質の改善の目的
環流ビオトロン設置▼動画あり
 - 平成28年12月29日撮影
- 奈良県 Dゴルフ場
透明度の向上、藻類の抑制、水質・臭気・底質の改善の目的
アクアリフト1600LN設置散布
環流ビオトロン設置▼動画あり
 - 平成28年11月29日撮影
- 兵庫県 Ｋ工場内調整池
藻類の抑制、水質改善の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成28年11月18日撮影
- 福岡県 Ｔゴルフクラブの池
透明度の向上、藻類の抑制、水質・底質の改善の目的
環流ビオトロン設置▼動画あり
 - 平成28年10月20日撮影
- 静岡県 Ｂ公園池
藻類の抑制、透明度の向上、底質・水質改善の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成28年9月16日撮影
- 新潟県 Ｂ日本庭園池
透明度の向上、藻類の抑制、水質・底質の改善の目的
アクアリフト1600LN散布
環流ビオトロン設置▼動画あり
 - 平成28年7月8日撮影
- （財）国立京都国際会館の池
透明度の向上、藻類の抑制、水質・底質の改善の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成28年5月24日
- 静岡県 Ｂ公園池
透明度の向上、ヘドロの分解、水質・底質改善の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成27年11月5日
- W城址 お堀
透明度の向上、水質・底質・臭気の改善、藻類の抑制の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成27年8月12日
- D養鶏場 調整池
池の茶褐色の水の改善、透明度向上、底質改善の目的
アクアリフト1600LN散布
環流ビオトロン設置▼動画あり
 - 平成27年7月16日
- S公園堀池
透明度の向上、藻類の抑制、水質・臭気の改善の目的
アクアリフト1600PN・LN設置散布
環流ビオトロン設置▼動画あり
 - 平成27年6月4日
- 兵庫県 Y公園
アオコの抑制、透明度の向上、水質改善の目的
アクアリフト700PN・1600LN設置散布
環流ビオトロン設置▼動画あり
 - 平成27年4月28日
- 大阪府 Ａ公園
透視度の向上、ヘドロの分解、水質・臭気・油膜改善の目的
アクアリフト700PN・1600LN設置散布
環流ビオトロン設置▼動画あり
 - 平成27年3月17日
- 奈良県 D公園池
藻類の抑制、臭気・水質・底質の改善の目的
環流ビオトロン設置▼動画あり
 - 平成26年8月4日
- 三重県 F寺院
透明度の向上、ヘドロの分解、水質・底質・臭気・油膜改善の目的
環流ビオトロンBT-1500型設置
アクアリフト1600LN 散布
 - 平成26年4月22日
- E競艇場
藻類の抑制、底質・水質改善、透明度の向上の目的
環流ビオトロンBT-1500型設置
アクアリフト1600LN 散布▼動画あり
 - 平成26年4月15日
- 奈良県 Dゴルフ場
透明度の向上、藻類の抑制、水質・臭気・底質の改善の目的
環流ビオトロン200型設置
アクアリフト1600PN 設置
 - 平成26年4月14日
- 大阪府 M公園池
藻類の抑制、臭気・水質改善、透明度の向上の目的
環流ビオトロンBT-500型設置
1600PN・LN 設置散布▼動画あり
 - 平成26年4月8日
- Y競艇場
藻類の抑制、臭気・水質・底質の改善、透明度の向上の目的
環流ビオトロンBT-500型設置
1600PN・LN 設置散布▼動画あり
 - 平成26年1月7日
- R園 M池
水質の改善、透明度の向上、臭気の改善、藻類の抑制の目的
環流ビオトロンBT-100型設置
アクアリフト1600PN・LN 設置散布
 - 平成25年8月12日
- 京都府 Z寺池
泡の改善、透明度の向上、臭気の改善の目的
環流ビオトロンBT-100型設置
1600P・L 設置散布▼動画あり
 - 平成25年8月6日
- 福岡県 Ｋ寺池
透明度の向上、水質の改善、
鯉の病気対策、藻類の抑制の目的
環流ビオトロンBT-100型設置
アクアリフト700PN設置
 - 平成25年7月30日
- 遊園地のボートの池
池の透明度の向上、ヘドロ分解、
水質改善の目的 その後
環流ビオトロンBT-100型設置
 - 平成25年7月4日
- 奈良県 Ｃカントリークラブ
透明度の向上、藻類の抑制、
水質改善の目的
環流ビオトロンBT-100型設置
アクアリフト1600P・L 設置散布
 - 平成25年6月19日
- 長崎県 Ｋ園池
アオコの抑制、
透明度の向上、水質の改善の目的
環流ビオトロン装置設置
 - 平成24年4月16日
- 福岡市 Y神社池
明度の向上、水質の改善の目的
環流ビオトロン装置設置
 - 平成25年4月1日
- N園
藻類の抑制、水質の改善、透明度の
向上の目的
環流ビオトロン装置設置
アクアリフト700PN・1600L設置散布
 - 平成24年11月26日
- 福岡県久留米市 Ｄ神社池
透明度の向上、底泥、水質の改善の目的
環流ビオトロン装置設置
アクアリフト700PN・1600L設置散布
 - 平成24年7月10日
- 佐賀県 O池
池の透明度改善、ヘドロ分解、
水質改善の目的
環流ビオトロン装置設置
 - 平成23年3月30日
- 福岡市東区 遊園地の池
池の透明度の向上、
ヘドロ分解、水質改善の目的
環流ビオトロン装置設置▼動画あり
 - 平成23年2月24日
- 福岡県中間市 F貯水池
貯水地の水質改善、透視度の向上の目的
環流ビオトロン装置設置
 - 平成23年2月10日
- 福岡県芦屋町 A庭園池
庭園池の池の透明度の向上、
ヘドロ分解、臭気改善の目的
環流ビオトロン装置設置▼動画あり
 - 平成23年1月19日
- 佐世保市テーマパークH池
テーマパーク内の池の透明度の向上、
アオコ、ヘドロ分解、臭気改善の目的
環流ビオトロン装置設置▼動画あり
 - 平成22年7月28日
- 福岡県粕屋町 K公園
農業ため池の透明度の向上、
ヘドロ分解、アオコ、臭気改善の目
環流ビオトロン装置設置▼動画あり
 - 平成21年12月29日
- 福岡県 S大社
透明度の向上とヘドロ分解の目的
環流ビオトロン装置設置▼動画あり
 - 平成21年12月21日
- 福岡県 F池
水質改善、透明度向上、
ヘドロ分解の目的
環流ビオトロン装置設置▼動画あり
 - 平成21年12月20日
- 福岡県太宰府市 T宮
水質浄化、透明度向上、ヘドロ分解の目的
環流ビオトロン装置設置▼動画あり
 - 平成21年5月22日
- 佐賀市S菖蒲園
水量 800トン
環流ビオトロン装置設置▼動画あり
|
|
|
|
|
※Biotron is a registered trademark of Aqua-Service.
|
